Description

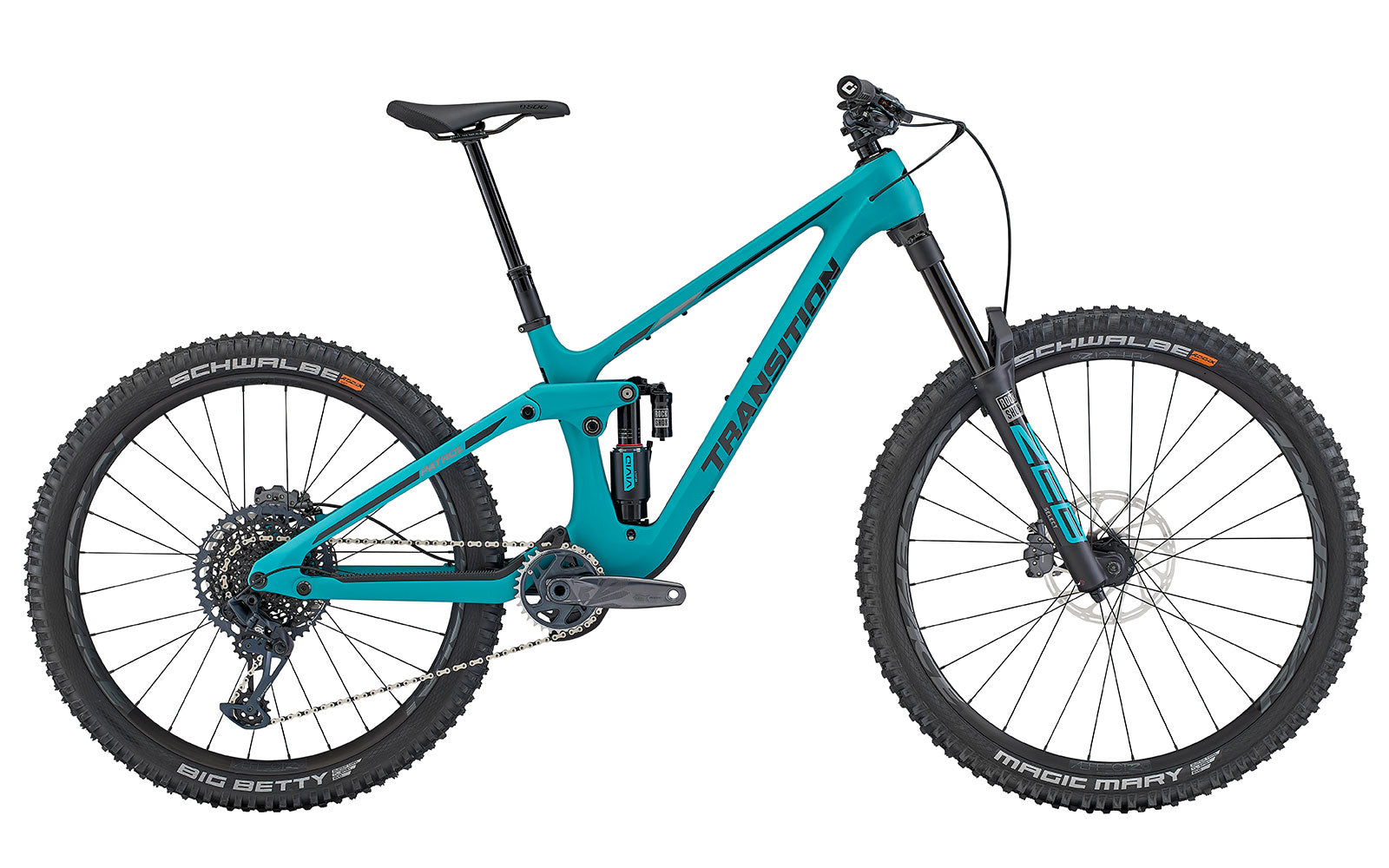

transition gravel bike Transition Patrol Carbon GX AXS 2025, Blue Lagoon / X-LargeNew Transition Patrol: the Pure Bred Party Animal The mixed wheel Transition Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail Being one of the longest standing bikes in our lineup, the Transition Patrol was the obvious choice to mix it up. Updated geometry to accommodate the 29" front 27. 5" rear wheels and revised suspension tune might just make you ride all day, and then all night.
New Transition Patrol: the Pure Bred Party Animal
The mixed wheel Transition Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail
Being one of the longest standing bikes in our lineup, the Transition Patrol was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Transition Patrol loves to party. From bike parks to your local trails, the Transition Patrol isn't concerned with where you ride but rather how much fun you are having.
|
Product |
Transition Patrol Carbon GX Bike |
|
Model Year |
2025 |
|
Riding Type |
Enduro / All-Mountain |
|
Rider |
Unisex |
|
Sizes and Geometry |
SM (High, Low) MD (High, Low) LG (High, Low) XL (High, Low) |
|
Wheel Size |
27.5" (650b) 29" Other: Mullet |
|
Frame Material |
Carbon Fiber |
|
Frame Material Details |
EPS-molded Toray fiber front and rear triangles; molded chainstay, seatstay, and down tube protection |
|
Rear Travel |
160mm |
|
Rear Shock |
RockShox Vivid Select, trunnion mount, 205mm length x 60mm stroke |
|
Fork |
RockShox ZEB Select, 38mm stanchions |
|
Fork Travel |
160mm |
|
Head Tube Diameter |
Straight, 56mm |
|
Headset |
FSA No.55R/57, ZS56 upper/lower |
|
Handlebar |
ANVL Mandrel Alloy, 800mm width, 35mm clamp diameter Rise: 20mm (SM), 30mm (MD), 40mm (LG/XL) |
|
Stem |
ANVL Swage, 40mm length, 35mm bar clamp |
|
Grips |
ODI Elite Flow, lock-on |
|
Brakes |
SRAM Maven Bronze, 4-piston, SRAM CenterLine 200mm rotors |
|
Brake Levers |
SRAM Maven Bronze Stealth, tool-free reach adjust |
|
Drivetrain |
1x |
|
Shifters |
SRAM GX Eagle, 12-speed |
|
Front Derailleur |
None |
|
Rear Derailleur |
SRAM GX Eagle, 12-speed |
|
ISCG Tabs |
ISCG05 |
|
Chainguide |
OneUp upper slider with bashguard |
|
Cranks |
SRAM GX Eagle Alloy DUB, 165mm length |
|
Chainrings |
SRAM GX Eagle, 32 tooth |
|
Bottom Bracket |
SRAM DUB, 73mm English/BSA threaded |
|
Pedals |
None |
|
Chain |
SRAM GX Eagle, 12-speed |
|
Cassette |
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth |
|
Rims |
Race Face Aeffect R, 28 hole |
|
Hubs |
Race Face Trace, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver |
|
Spokes |
Race Face, 2.0/1.7/2.0 butted |
|
Tires |
Front: Schwalbe Magic Mary, Super Trail casing, Addix Soft compound, 29" x 2.4" Rear: Schwalbe Big Betty, Super Trail casing, Addix Soft compound, 27.5" x 2.4" |
|
Saddle |
SDG Bel-Air V3 |
|
Seatpost |
OneUp dropper Drop: 150mm (SM), 180mm (MD), 210mm (LG/XL) |
|
Seatpost Diameter |
31.6mm |
|
Seatpost Clamp |
Single bolt, 37.0mm |
|
Rear Dropout / Hub Dimensions |
12mm x 148mm (Boost) |
|
Max. Tire Size |
27.5" x 2.6" |
|
Bottle Cage Mounts |
One inside front triangle, plus accessory mounts under top tube |
|
Colors |
Beachwood, Blue Lagoon |
|
Warranty |
Lifetime frame |
|
Weight |
|
|
Miscellaneous |
• GiddyUp Four-Bar Horst-Link rear suspension design • Mixed ("Mullet") wheels: 29" front, 27.5" rear • Geometry adjustable via two-position flip chip at lower shock mount • Rear travel can be increased to 170mm with longer 65mm-stroke shock • Internal cable routing with guide tubes for rear derailleur housing • External rear brake hose routing • SRAM UDH (Universal Derailleur Hanger) • Compatible with dual-crown forks • Includes tubeless valves and tire sealant • Frame weight: 7.4lbs (3.36kg), size MD, with FOX FLOAT X2 shock |
